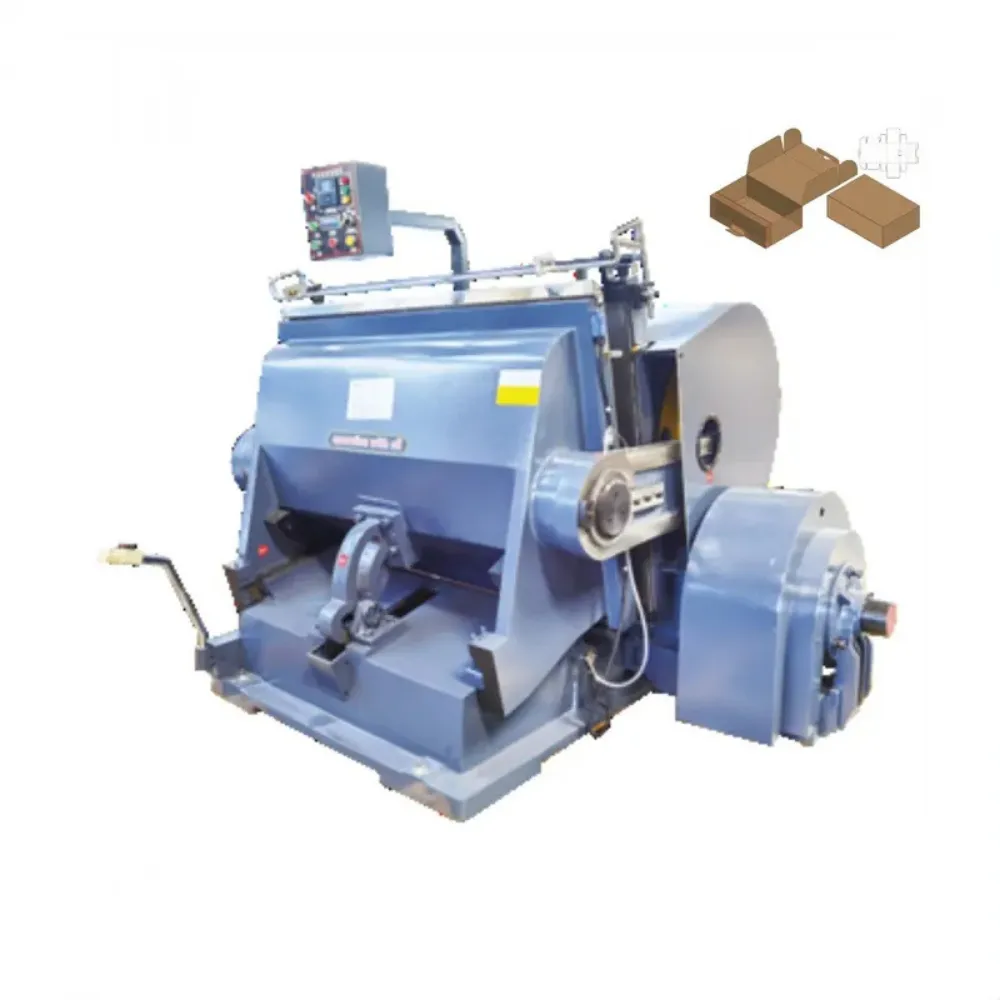

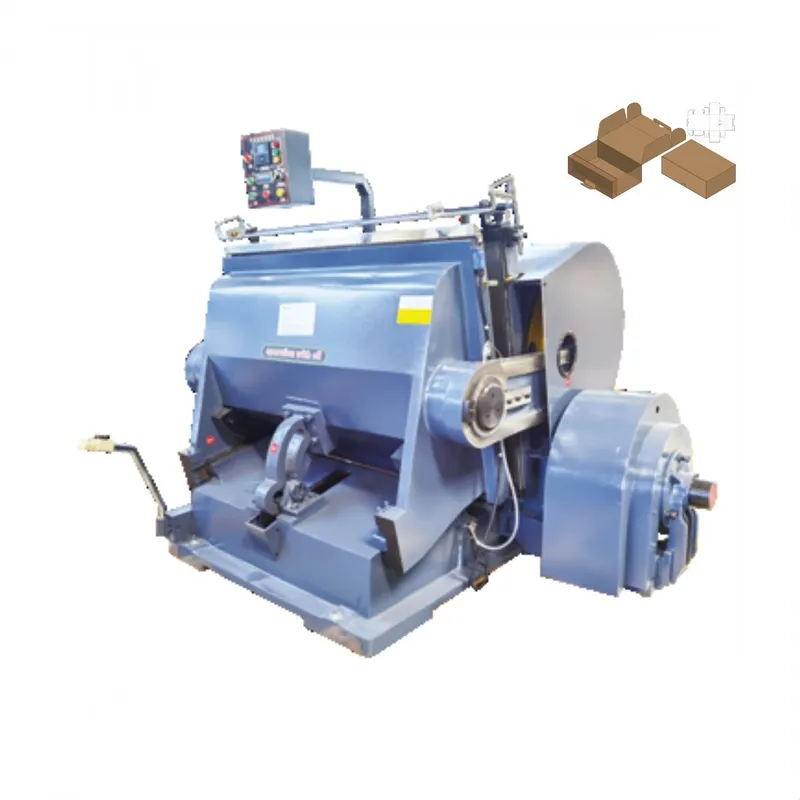

Manual Feed Creasing and Die Cutting Machine | Heavy-Duty Precision Board Cutter
Upgrade your production with the ML-1200 Creasing and Die Cutting Machine. This heavy-duty Manual Die Cutting & Creasing Machine is the perfect strategic asset for SMEs , designed to bridge the gap between manual labor and full automation.
| Model name |
FKT-ML1200 |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Min. Order |
01 |
| Warranty |
12 Months. |
| Packaging |
Standard Export Wooden Case |
Creasing and Die Cutting Machine
The Creasing and Die Cutting Machine is an ideal solution for boosting productivity across the packaging printing and RMG sectors. Designed for reliability and precision, this Creasing and Die Cutting Machine delivers consistent cutting and creasing performance, making it well suited for high-demand industrial environments.
Product Specification
| S/L | Source Feature/Finding | Customer Requirement |
| 01 | Max. Rule Area 1200*820mm Max Rule Length ≤30m Working speed 22±2strokes/Min Motor power 5.5kw Gross weight 4500kg Net weight 4200kg Dimension(L*W*H)mm 2000*2050*1700mm | Manual Die Cutting Machine with Foil Stamping Option Paper Thickness: 3.5mm to 4mm 2000 GSM Solid Card and Craft Paper Material (After Pasting) |
Advantage & Features
- Equipped with four safety protection switches: gantry protection, triangle protection, handle protection, and automatic light control protection. If any of these fail, the machine will automatically stop operating.
- Offers three operating modes: single-piece die cutting, continuous die cutting, and delay die cutting. The delay time can be adjusted based on the operator’s skill level, making it suitable for both experienced and novice workers.

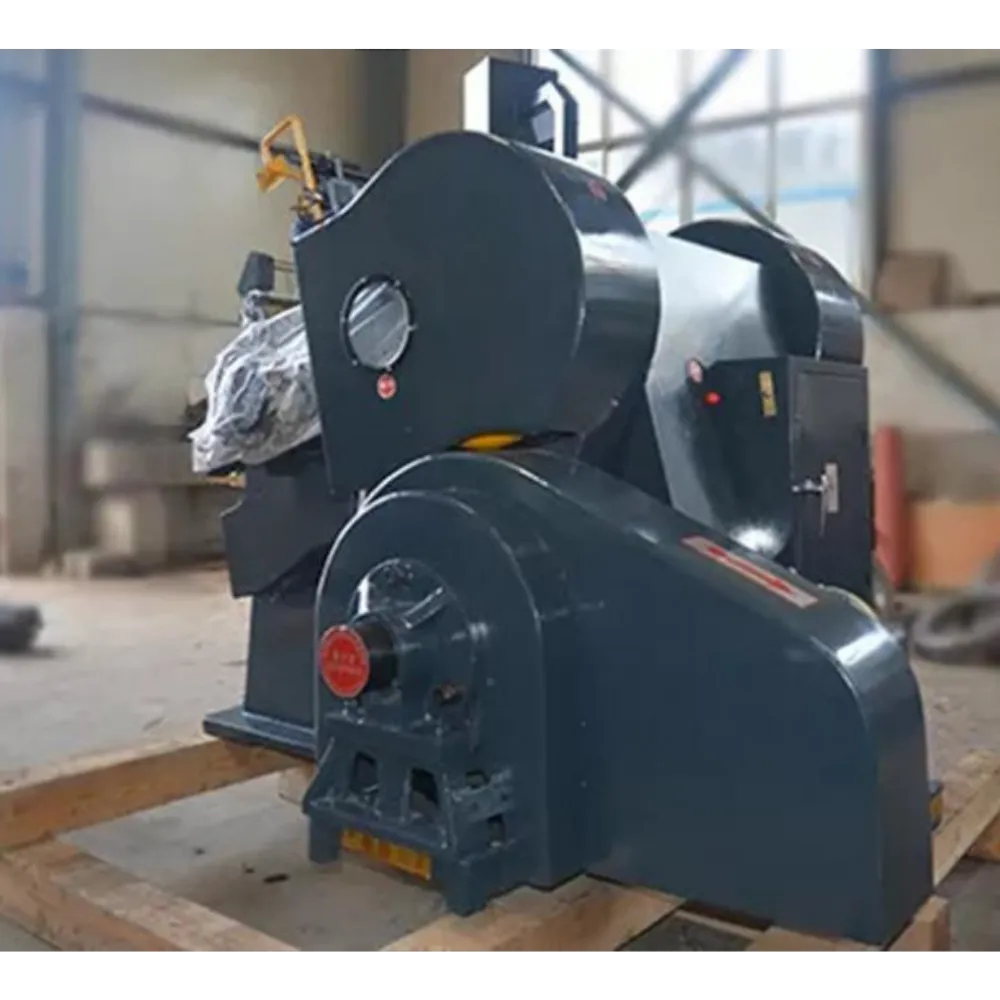

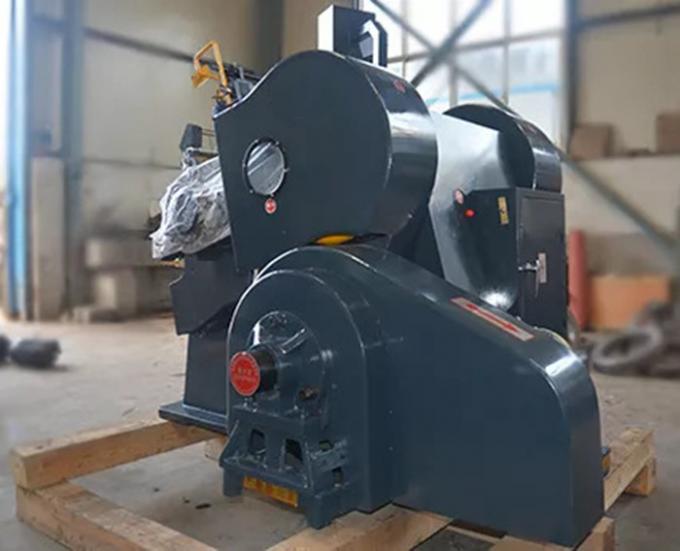

- The machine body is made from high-quality integral casting, ensuring excellent strength and rigidity for cutting and creasing tasks in the factory.

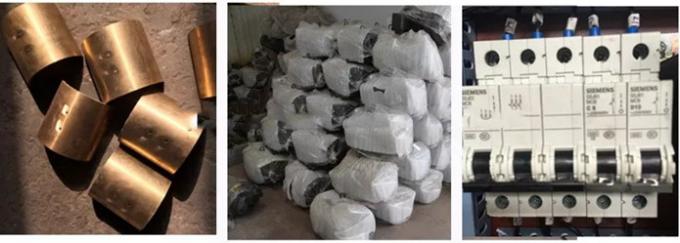

- The sliding bearing is made of premium copper alloy, providing superior wear resistance.
- The brake clutch uses an electromagnetic suction plate system, ensuring quick, sensitive, and reliable braking performance.
- The adjustable plate holder allows for easier and more accurate plate installation and removal.
- The lubrication system includes both centralized and manual oiling methods for efficient maintenance.
Applications
The versatility of this Creasing and Die Cutting Machine is its biggest advantage. It’s not just a single-purpose tool—it opens doors to Bangladesh’s key growth sectors. Our Manual Die Cutting & Creasing Machine can produce a wide range of products, making it a valuable asset.
- Packaging Industry: Ideal for folding cartons, pizza boxes, gift boxes, and corrugated cartons made from paper board.
- Food & Beverage: Perfect for custom packaging in the growing processed food and snack market.
- RMG & Textiles: Essential for trims and accessories like hang tags, paper labels, box inserts, and detailed fabric or leather cuts.
- Pharmaceuticals: Delivers high-precision folding cartons for medicine packaging using a flat press creasing die cutting process.
- Other Industries: Suitable for leather goods components, gaskets, and semi-rigid plastics.
Investing in this machine enables import substitution, helping you produce international-standard goods and win contracts from major exporters. This Manual Die Cutting & Creasing Machine is your step up the value chain—no other machine offers such strategic potential.
Product Comparison Table with Similar Products
| Model | A-930 | B-1100 | ML-1200 |
| Max Cutting Size | 930×670 mm | 1100×800 mm | 1200×820 mm |
| Mechanical Speed | ∼23 strokes/min | ∼20 strokes/min | 22±2strokes/Min |
| Motor Power | 4 kW | 4 kW | 5.5 kW |
| Weight | 2,800–3,000 kg | 4,000–4,500 kg | 4200kg |
| Primary Use Case | Smaller cartons, labels, tags. Good for businesses with limited floor space. | General-purpose packaging. A good “all-rounder”. | Large-format boxes, corrugated cartons, and full-sheet job imposition. |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The FKT-ML1200 Creasing and Die Cutting Machine (Manual Feed Board) comes with a service warranty that covers technical malfunctions and performance issues related to the machine’s core creasing and die-cutting functions. Certain components—such as cutting plates, rubber pads, bearings, and other consumable parts—are subject to natural wear and tear and are therefore not covered under this warranty. If any covered part experiences a malfunction within the warranty period, our trained technicians will provide the necessary repair or replacement service. However, customers will be responsible for purchasing any required spare parts. Please note that all shipping and transportation costs associated with sending or receiving parts or equipment remain the responsibility of the customer.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Frequently Asked Questions
Q1: What does “manual feed” mean on a Creasing and Die Cutting Machine?
A: Manual feed means the operator hand-feeds each sheet and removes the finished piece, while the pressing operation is motor-driven.
Q2: What materials can this Creasing and Die Cutting Machine handle?
A: It can process paperboard, cardboard, corrugated board, PVC, leather, and fabric.
Q3: Is this Creasing and Die Cutting Machine difficult to maintain?
A: No. Regular use of the centralized lubrication system keeps the machine running smoothly.
Q4: Why is this 5-ton Creasing and Die Cutting Machine better than a lighter model?
A: The heavy cast-iron construction minimizes vibration, ensuring even pressure and precise cuts during post-press operations.
Q5: Is this Creasing and Die Cutting Machine a good investment for SMEs?
A: Yes. It is cost-effective, improves productivity and quality, and reduces material waste.
Q6: What skills does an operator need to run a Creasing and Die Cutting Machine?
A: Operators should have attention to detail, safety awareness, and the stamina required for continuous sheet feeding.
