Automatic Double Station Heat Transfer Printing Press Machine for Fast & Precise Printing

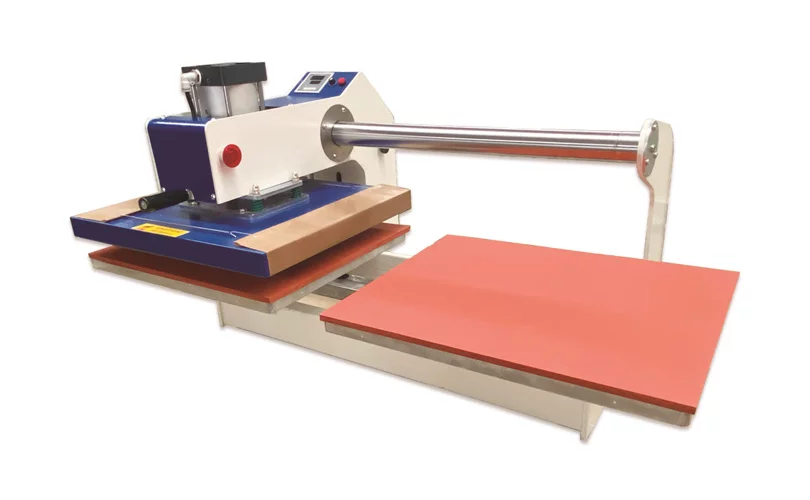

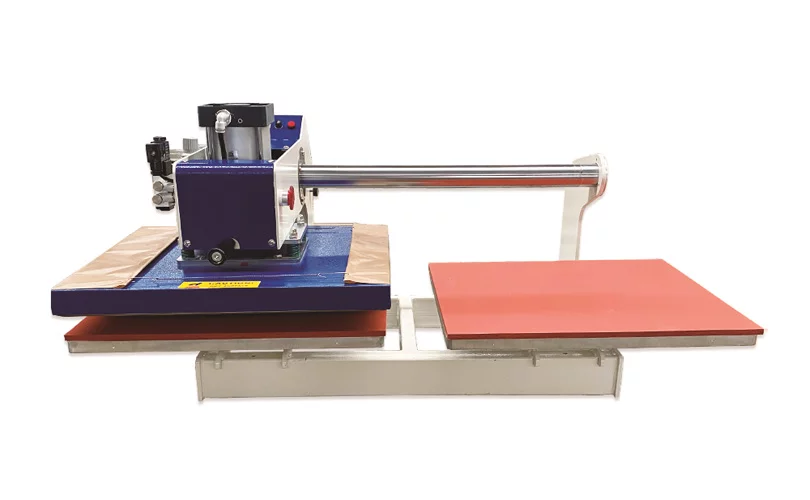

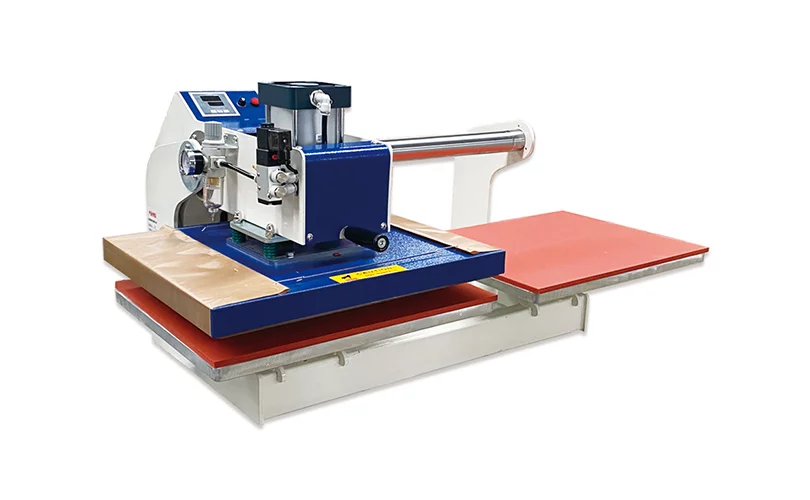

The PT-J4 Double position Heat Transfer Machine (Pneumatic) is a robust, double station heat press machine featuring a sturdy frame, dual work stations, and adopts pneumatic pressure for optimal efficiency.
| Model name |
PT-J4 |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Min. Order |
01 |
| Warranty |
12 Months. |
| Packaging |
Standard Export Wooden Case |
Automatic Double position Heat Transfer Printing Machine
Perfect for T-shirts, garments, and various fabric printing, this powerful double position heat transfer machine is a core component of professional finishing solutions, minimizing idle time by allowing simultaneous loading and pressing while ensuring high-quality, consistent heat transfers. Elevate your production speed and print precision with this essential piece of equipment—not just an accessory—that can be dedicated to high-volume workflows in the competitive Bangladesh market.
Product Specification
| Model | Heating area | Temp | Time range | Voltage | Power | Packing size | GW |
| PT-J401 | 400*500mm | 260℃ | 0-999s | 220V | 400KW | 580*470*540mm | 41.5KG |
| PT-J402 | 400*600mm | 260℃ | 0-999s | 220V | 3KW | 1220*750*65mm | 130KG |
| PT-J403 | 500*700mm | 260℃ | 0-999s | 220V | 3KW | 640*1020*960mm | 150KG |
| PT-J404 | 600*800mm | 260℃ | 0-999s | 380V | 4.5KW | 1800*980*1500mm | 370KG |
| PT-405 | 600*800mm | 260℃ | 0-999s | 380V | 6KW | 1900*1000*1500mm | 390KG |
Advantage & Features

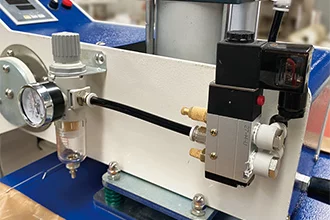

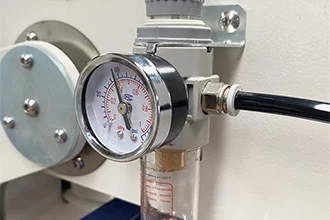

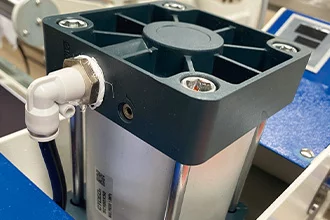

This pneumatic double-station heat transfer machine uses a pneumatic cylinder device to turn low air pressure into a strong compression force. It features a single heating plate that moves side-to-side over two printing stations, ensuring the head runs parallel to the work surface for even pressure distribution. This makes the entire operation much faster and more efficient than manual methods. To ensure precise, high-quality heat transfers and reduce misalignment, it’s equipped with a durable 35mm thick heating plate and operator safety protection features, which also helps lower long-term operating costs.
Applications
The PT-J4 Double position Heat Transfer Machine is perfect for Bangladesh businesses needing efficient, high-quality heat transfers:
- Garment Manufacturing: Apply designs, logos, and labels on garments for local and export orders.
- Custom Apparel & T-Shirt Printing: Ideal for custom T-shirts, hoodies, and sportswear — speeds up personalized orders.
- Sublimation Printing: Transfer vibrant designs onto polyester fabrics and sublimation-coated items with even pneumatic pressure.
- Heat Transfer Vinyl (HTV) Application: Apply HTV lettering, numbers, and graphics using a printer with strong, reliable adhesion.
- Promotional Products: Print tote bags, caps (with attachments), and flags — a versatile double position heat transfer machine for branded goods.
- Home Textiles: Print decorative designs on cushions, pillowcases, and other flat fabric items.
Product Comparison Table with Similar Products
| Feature / Model | PT-J4 Double position Heat Transfer Machine (Pneumatic) | SUJA GLOBAL Up-Sliding Pneumatic Double Station | Xinding XD-521 Double Head Heat Press Machine | Freesub 5-in-1 Combo Heat Press (Manual) |
| Type of Press | Pneumatic, Double-Station, Upper Sliding | Pneumatic, Double-Station, Up-Sliding | Pneumatic, Double-Head, Direct Pressure | Manual, Clamshell / Swing-away, Multi-Function |
| Automation | Semi-Automatic | Semi-Automatic | Semi-Automatic | Manual |
| Printing Area (Approx.) | 40×60 cm (Primary Model) | 40×60 cm (Various Sizes Available) | 40×60 cm (Specific model) | 38×38 cm / 15×15 inch (T-shirt platen) |
| Power | 3 KW | 3.8 KW | Varies (often 3 KW +) | 1.2 KW – 1.8 KW |
| Max. Temp. | 260∘C (some up to 399∘C) | 399∘C | 299∘C – 399∘C | 200∘C – 250∘C |
| Productivity | Very High (Dual Station for continuous work) | Very High (Dual Station) | Very High (Dual Head, often for specific items) | Low to Medium (Single Station, Manual) |
| Pressure Method | Pneumatic Cylinder | Pneumatic | Pneumatic / Direct Mechanical | Manual Lever / Knob |
| Best For | Medium to Large-scale garment/textile production, high-volume custom printing | Medium to Large-scale, industrial use | Industrial, high-volume specialized production | Small business, home use, diverse product range |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Double Position Heat Transfer Machine (Pneumatic) comes with a service warranty that covers its main electrical components, pneumatic system, and digital control unit. Some items—like heating pads, silicone pressure mats, and air seals—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Frequently Asked Questions
Q1: What makes a double position heat transfer machine more efficient?
A1: A double position heat transfer machine like the PT-J4 presses one platen while loading the other, cutting downtime and doubling output.
Q2: What kind of power supply does the PT-J4 require?
A2: A double position heat transfer machine like the PT-J4 cuts downtime and doubles output by pressing one platen while loading the other.
Q3: How does pneumatic pressure benefit the heat transfer process?
A3: Pneumatic pressure gives strong, even force for smooth, lasting transfers without manual effort.
Q4: What is the estimated lifespan of the PT-J4 heat press?
A4: With proper care, the PT-J4 double position heat transfer machine lasts years and includes a 1-year core warranty.
