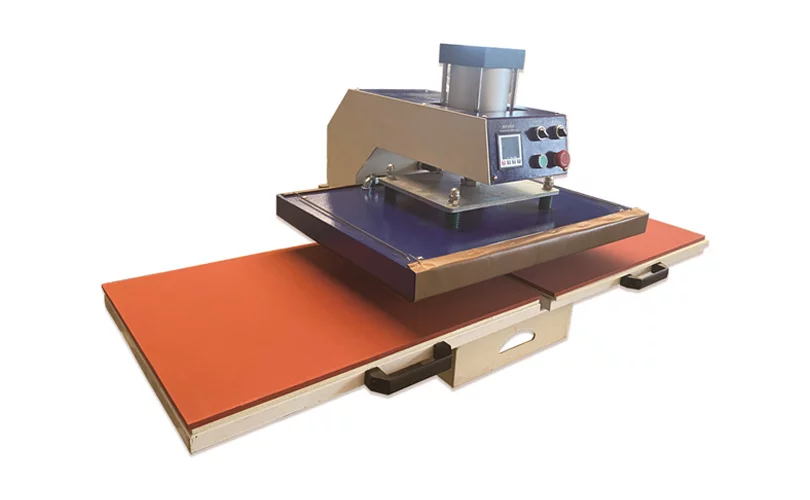

Double-position Semi automatic Heat Transfer Machine Sliding Heat Press Machine
Elevate your textile and garment decoration business in Bangladesh with the PT-J3 Double Position Semi automatic Heat Transfer Machine. This is a key brand advantage for businesses looking to scale up. Engineered for efficiency, precision, and a fast printing speed, this robust, pneumatic heat press allows for simultaneous preparation and pressing, significantly boosting your production speed and output.
| Model name |
PT-J3 |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Min. Order |
01 |
| Warranty |
12 Months. |
| Packaging |
Standard Export Wooden Case |
Double-position Semi-automatic Heat Transfer Machine
Ideal for businesses looking to optimize high-volume heat transfer production, the PT-J3 Double Position Semi Automatic Heat Transfer Machine is an integral part of advanced Finishing Solutions for t-shirts, garments, and promotional items. Combining time-saving, labor-efficient operation with industrial-grade performance, this Double Position Semi Automatic Heat Transfer Machine makes consistent, high-quality heat transfers more accessible and cost-effective than ever.
Product Specification
| Model | Printing Area | Temperature Range | Voltage/Power | G.W. | Packing Size（mm） |
| PT-J301 | 400*500mm | 0-260℃ | 220V/3KW | 98 | 1050*750*700 |
| PT-J302 | 400*600mm | 0-260℃ | 220V/3.5KW | 104 | 1250*750*700 |
| PT-J303 | 500*700mm | 0-260℃ | 220V/4.5KW | 139 | 1440*800*800 |
| PT-J304 | 400*500mm | 0-260℃ | 380V/3KW | 600 | 1500*800*1700 |
| PT-J305 | 500*700mm | 0-260℃ | 380V/4.5KW | 780 | 1600*900*1700 |
| PT-J306 | 600*800mm | 0-260℃ | 380V/6KW | 600 | 1500*800*1700 |
Advantages & Features
-
The Double position Semi automatic Heat Transfer Machine features an easy push-pull worktable with a new trolley-based design, ensuring smooth sliding and faster platen movement between stations. This lightweight yet robust structure offers excellent load-bearing capacity and long-term durability.
-
The heating plate is specially designed for rapid heating and cooling, ensuring even heat distribution across the surface. This enables the Double position Semi automatic Heat Transfer Machine to deliver high-quality results for heat transfer printing, hot stamping, and sublimation.
-

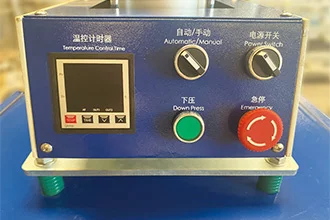

A dedicated digital control panel allows precise temperature and time settings, ensuring repeatable results.
-
The high-quality pneumatic system, powered by a robust driver, delivers consistent and adjustable pressure to suit different materials and transfer applications.
-
Setup for new designs is fast and simple, similar to quick screen version adjustments. The platen system allows easy locking, replacement, and size changes.
-
Designed for maximum uptime, this Double position Semi automatic Heat Transfer Machine is virtually maintenance-free, reducing downtime and operating costs.
Applications
The PT-J3 Double position Semi automatic Heat Transfer Machine is widely used across Bangladesh’s textile, garment, and promotional product sectors:
-
Decorating Apparel: Ideal for t-shirts, jerseys, sportswear, and other garments requiring consistent heat transfer quality.
-
Customizing Promotional Products: Suitable for bags, coasters, and branded giveaway items.
-
Adding Labels and Logos: Produces clean, professional finishes for brand logos and garment labels.
-
Integrated Workflows: Perfect for users producing their own transfers via screen printing, pairing efficiently with advanced screen printing machines featuring automatic scraping and cleaning.
-
Flexible Production Setups: Easily interchangeable lower platens allow quick adaptation to different product sizes and shapes.
Product Comparison Table with Similar Products
| Brand | Key Product Line(s) | Primary Material(s) | Backlighting | Filtration |
| PT-J3 (Generic Model) | PT-J3 / PT Series | Stainless Steel (Implied) | Standard (Fluorescent) | Not Mentioned |
| Vastex | VWB-Series | Stainless Steel | Optional Add-on | Optional (Mesh Tray) |
| RhinoTech | Pro, Econ, Ultra/PolyLite | Polypropylene | Standard (LED) | Optional (Multi-Stage) |
| Lawson | Poly-Pro Series | Polypropylene | Standard | Optional (Multi-Stage) |
| Easiway | E-Series | Polypropylene | Optional/Included | Optional (EasiFlo) |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Double Position Semi Automatic Heat Transfer Machine comes with a service warranty that covers its main electrical parts, pneumatic system, and digital control unit. Some items—like heating pads, silicone mats, and pressure seals—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Frequently Asked Questions
Q1: What is a Double position Semi automatic Heat Transfer Machine?
A1: A Double position Semi automatic Heat Transfer Machine uses two platens to enable continuous operation, combining automatic pressure with manual loading for higher productivity.
Q2: How does the PT-J3 Double position Semi automatic Heat Transfer Machine compare to manual presses?
A2: It delivers significantly higher output with dual platens and pneumatic pressure, making it faster, easier, and more consistent than manual heat presses.
Q3: Is this Double position Semi automatic Heat Transfer Machine suitable for sublimation?
A3: Yes. Its even heat distribution and stable pressure make it ideal for sublimation on polyester fabrics and coated blanks.
Q4: What maintenance does the Double position Semi automatic Heat Transfer Machine require?
A4: Basic cleaning, periodic air line checks, debris removal, and light lubrication. Lifetime maintenance support is available from PT.
Q5: Are spare parts available in Bangladesh?
A5: Yes. Common spare parts such as heating elements and sensors are readily available through local heat press suppliers.
Q6: What is the power requirement for the Double position Semi automatic Heat Transfer Machine?
A6: Operates on 220V power, consuming approximately 3–4.5 kW depending on platen size. Proper electrical wiring is recommended.
