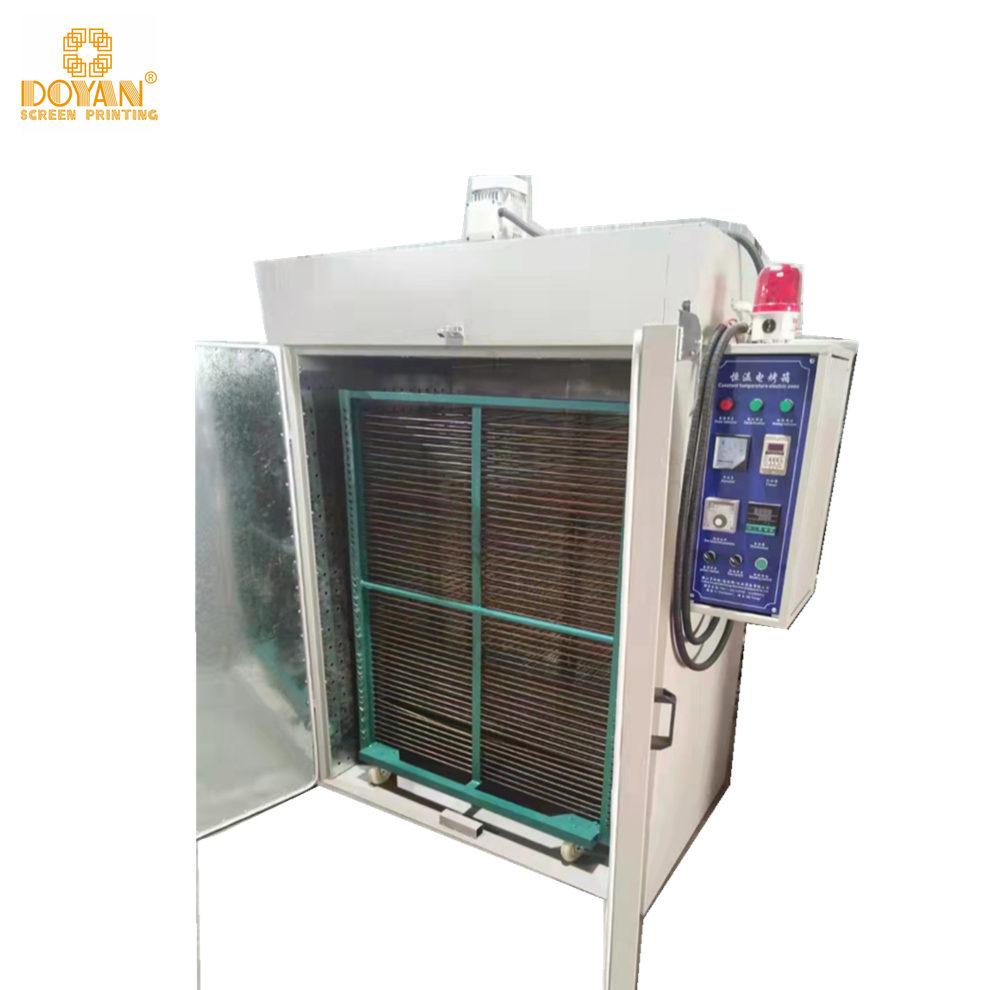

Advanced High Temperature Industrial Heating Ovens Machine
The PT-C4 Industrial High Temperature Ovens is a robust and energy-efficient industrial heating solution designed for precision drying, curing, and heat-setting applications.
| Model name |
PT-C4 |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Min. Order |
01 |
| Warranty |
12 Months. |
| Packaging |
Standard Export Wooden Case |
Industrial High Temperature Ovens
With a maximum temperature of 250°C and advanced hot air circulation, it’s an indispensable asset for textile printing, garment, and other manufacturing sectors in Bangladesh, ensuring consistent quality and enhanced productivity.
Product Specification
| Model | Inner Size(W*DH) | Outer Size(W*DH) | Inner Temperature | Cotton Insulation | Voltage Power |
| PT-C4 | 1200*850*1550mm | 1050*1720*2200mm | 0-250℃ | 80K*100mm | 380V/14KW |
Advantage & Features
- The Industrial High Temperature Ovens digital temperature control system makes operation easy with simple button settings and automatic temperature regulation.

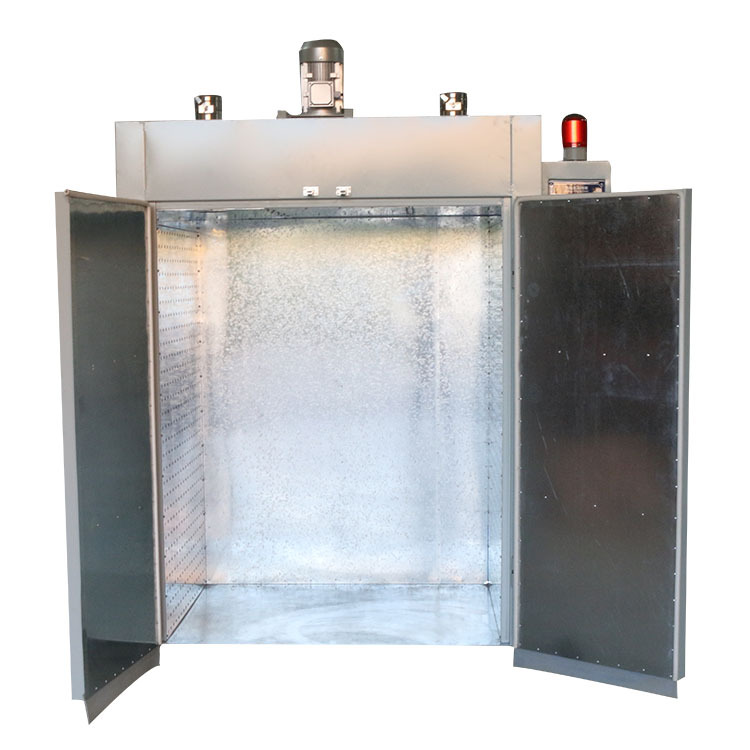

- The oven’s interior is made from stainless steel or galvanized sheet, keeping it clean and free from contamination while ensuring long-term durability.
- Powerful hot air circulation maintains an even temperature throughout the oven for consistent performance.
- The stainless steel heating tubes are highly efficient and last much longer than regular heating elements.
Applications
- Heat Setting: This process is mainly used on synthetic and blended fabrics like spandex to help lock in the shape, prevent shrinkage, reduce wrinkles, and improve fabric strength and color. It’s done using industrial high temperature ovens, usually between 160°C and 220°C. Hot air ovens are most commonly used for this.
- Drying: After washing or dyeing, fabrics need to be dried properly. Industrial High Temperature Ovens help remove moisture quickly and evenly using hot air, which is especially important for knit fabrics so they’re ready for the next steps.
- Curing: This step helps finishes, dyes, or coatings stick better and last longer. For DTF powder, curing is usually done at 160–180°C for 2 to 10 minutes. Garments needing wrinkle-free finishes may require up to 260°C, and this is where industrial high temperature ovens and dryers come in handy.
- Screen Frame Drying: In screen printing, screens coated with emulsion need gentle, controlled drying. This is done at lower temperatures—around 32–43°C—with filtered air and low humidity, using special drying cabinets.
- Thermal Bonding: This method uses heat to join fabric layers or add strength to materials, creating more durable composite textiles—another great use for high temperature industrial ovens.
Comparison Table with Similar Products
| Feature / Model | PT-C4 High Temperature Oven (Our Product) | Krishna Engineering Garment Curing Oven | Typical Local/Custom Industrial Oven (e.g., Meta Therm Furnace) | Imported Lab-Grade High Temp Oven (e.g., Taisite FCO-125D / SH Scientific) |
| Temperature Range | 0°C – 250°C | Up to 260°C (500°F) | Typically 50°C – 500°C+ (Customizable) | RT+10°C to 250°C or 300°C |
| Power (kW) | 14 Kw (380V) | 6.5 Kw (440V) | Varies widely based on size/temp, usually 10kW – 100kW+ | 0.8 Kw – 2.3 Kw (220V) |
| Inner Dimensions (approx. LWH or Capacity) | 1200 x 800 x 1200 mm (~1152 Liters) | 100-500 Kg capacity (specific dimensions vary) | Highly customizable; large walk-in, conveyor, or batch ovens available. | 54 Liters to 125 Liters (e.g., FCO-125D is 125L, SH-DO-54FGB is 54L) |
| Suitability for Bangladesh Market | Excellent for medium-to-large scale textile/garment curing and drying. Strong value for features. | Good for smaller to medium garment curing applications, competitive on initial cost. | Best for highly customized solutions, large volumes, or specific industrial needs with local support. | Primarily for R&D, quality control, or very small-scale specialized production; not for industrial volume. |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The High Temperature Oven comes with a service warranty that covers its main electrical system, temperature control unit, and overall structural frame. Some parts—like insulation panels, door seals, and heating tubes—naturally wear out over time due to high-heat operation and are considered consumables, so they’re not covered under the warranty. If any covered part fails during the warranty period, our team will take care of the repair or replacement service, but customers will need to purchase the spare parts separately. Please keep in mind that all shipping costs for sending or receiving any parts or equipment will be the customer’s responsibility.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Frequently Asked Questions
- What’s the PT-C4 used for?
Perfect for heat setting, DTF curing, and drying in textile, garment, and light industrial work—up to 250°C. - Is it energy efficient?
Yes! It’s built with efficient heating and insulation to help cut energy costs. - Is there after-sales support?
Most local suppliers offer setup, training, and basic support. Just confirm spare parts and technician availability. - How does it compare to other ovens?
It offers better temperature control and durability than many local models—great for heavy-duty use. - Can I customize it?
Yes, options like bigger chambers or conveyors are often available—talk to your supplier. - What power does it need?
A stable 380V three-phase power supply is required.
7. How long for delivery and setup?
Usually a few weeks for delivery. Setup is fast—check with your supplier for details.
